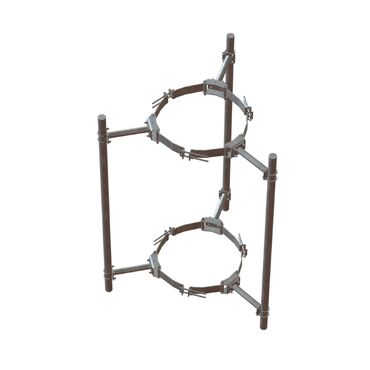

VB 4G Ø560-3000mm offset 400mm
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø560-660mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø710-813mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø860-970mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø1010-1120mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø1210-1320mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø1410-1520mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø1710-1820mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø2210-2320mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
