WBST 4G Ø76-244mm offset 400mm

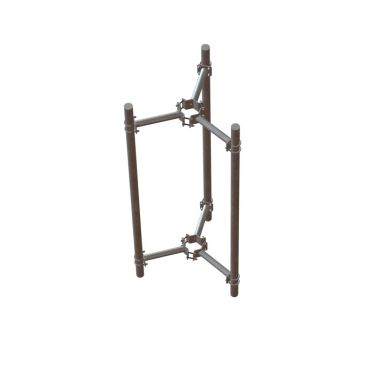

Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø76-121mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø125-168mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on a mast or pipe with a diameter of Ø193-244mm with fixed brackets.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support pole = Ø76 – max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
