ZVB offset 200mm Chimney-existing hoops

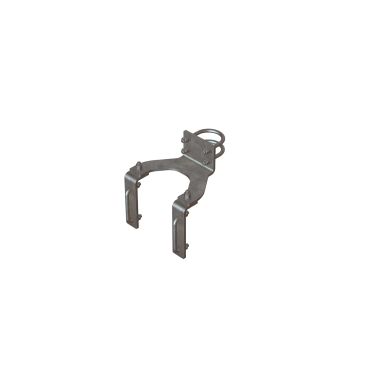

Antenna bracket in hot-dip galvanized steel for mounting on existing hoops 100x8mm
fixed fittings.

Basis Wind Vb, 0 = 24m / s
Terrain class = TC 2
Maximum installation height = 50m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support tube = Ø76 - Max 4000mm
Horizontal offset = 200mm

Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
