FF305-00 [Movable foundations]
FF305-00The following standard towers can be used with the foundation:
15.0m lattice tower, series 4
22.5m lattice tower, series 3
30.0m lattice tower, series 2
37.5m lattice tower, series 1
Movable foundation FF305-00 is used for temporary tower installation.

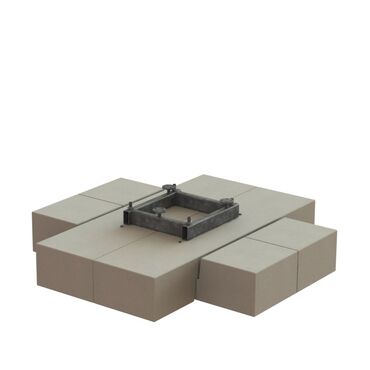

The foundation consists of four concrete blocks as well as two steel frames that gather the foundation and form the base for the tower.
Total weight a total of 16,190 kg
Consisting of:
4 pcs. Concrete elements of 3,960 kg
1 piece. Upper steel frame of 200 kg
1 piece. Lower steel frame of 150 kg
Soil:
When dimensioning, it is assumed that the soil under the foundation is not inferior to 100kN / m2.
Highest groundwater level should be lower than the bottom of the foundation.
Assembly:
The foundation can be placed on level areas such as parking lots, construction sites and the like. On grasslands, it is recommended to clear the surface and lay a 10 cm sustainable sand layer. Alternatively, the foundation can be placed on driveways, which are also suitable for protecting the pavement in parking lots and the like.
The foundation can be lifted into place with a forklift or lifting straps.
