FF301-00 [Movable foundations]
FF301-00The following standard towers can be used with the foundation:
7.5m lattice tower, series 1
9.0m lattice tower, series 0
12.5m lattice tower, series 0
Movable foundation FF301-00 is used for temporary mast installation.

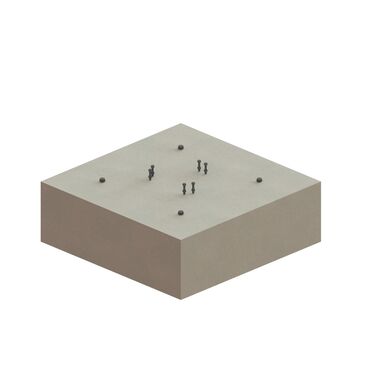

The foundation consists of a concrete block with embedded bolts fitting to section 301.
Total weight a total of 2,550 kg
Soil:
When dimensioning, it is assumed that the soil under the foundation is not inferior to 100kN / m2.
Highest groundwater level should be lower than the bottom of the foundation.
Assembly:
The foundation can be placed on level areas such as parking lots, construction sites and the like. On grasslands, it is recommended to clear the surface and lay a 10 cm sustainable sand layer.
Alternatively, the foundation can be placed on driveways, which are also suitable for protecting the pavement in parking lots and the like.

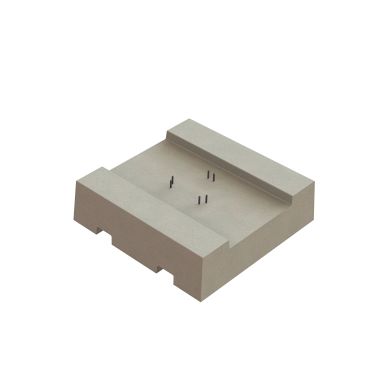

The foundation can be lifted into place with a forklift or lifting straps.
