FF304-00 [Movable foundations]
FF304-00The following standard towers can be used with the foundation:
7.5m lattice tower, series 4
15.0m lattice tower, series 3
22.5m lattice tower, series 2
30.0m lattice tower, series 1
Movable foundation FF304-00 is used for temporary tower installation.

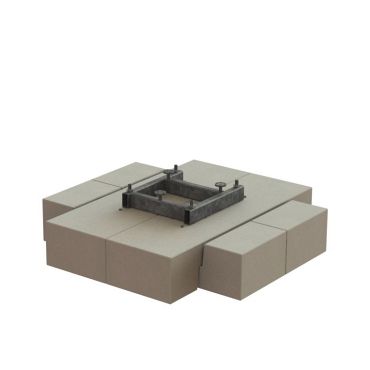

The foundation consists of four concrete blocks as well as two steel frames that gather the foundation and form the base for the tower.
Total weight: 12,724kg
Consisting of:
4 pcs. Concrete elements of 3,096 kg
1 piece. Upper steel frame of 190 kg
1 piece. Lower steel frame of 150 kg
Soil:
When dimensioning, it is assumed that the soil under the foundation is not inferior to 100kN / m2.
Highest groundwater level should be lower than the bottom of the foundation.
Assembly:
The foundation can be placed on level areas such as parking lots, construction sites and the like. On grasslands, it is recommended to clear the surface and lay a 10 cm sustainable sand layer. In the sand layer, a depression is made in the middle. This makes room for the collecting frame and secures the foundation against being able to tilt. Alternatively, drive plates are laid and the foundation is bricked up with formwork boards along the outer edges. Road plates are also suitable for protecting the pavement in parking lots and the like.
After preparing the substrate, the lower steel frame is placed, after which the concrete blocks are placed two by two. These are lifted in two included lifting brackets. Top steel frame and leveled horizontally by placing thin plate clips between the frame and the concrete surface before torque tightening of 1500 Nm.
The foundation can be lifted into place with a forklift or lifting straps.
