Top pole

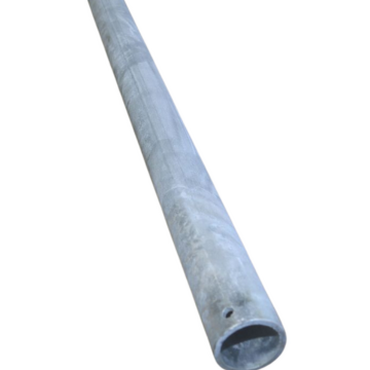

TOPRØR 60-3000The top pole is made as 3m top tube ø60,3x5,0mm. The top pole is mounted with top rings and pin steel bolts at the top of the lattice structure.
The top pole is mounted in brackets on the top of the lattice structure and reaches 2.25 m above the tower top. The top pole can be used for equipment or as a lightning conductor.
| Dimension and quality: | 3,000 mm ø60,3x5,0 mm, S355J2 according to EN 10025-2. |
| Surface: | Hot-dip galvanized according to EN ISO 1461. |
| Fastening, mast: | Top ring and stainless steel bolts. |
| Weight: | 23 kg |
| Wind surface: | 0.22 m² |
