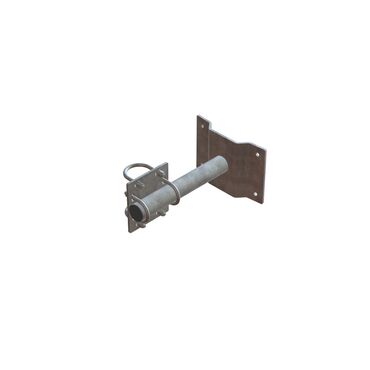

IBCM 4G offset 400mm Chimney

Antenna bracket in hot-dip galvanized steel for mounting on a brick chimney with a diameter
on Ø1600-3000mm with adjustable brackets.

Basis Wind Vb, 0 = 24m / s
Terrain class = TC 2
Maximum installation height = 50m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support tube = Ø76 - Max 4000mm
Horizontal offset = 400mm

Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
