SF302-00
SF302-00SF302-00 can be used as a foundation for the following towers:
7.5m lattice tower, series 2
9.0m lattice tower, series 0
15.0m lattice tower, series 1
18.0m lattice tower, series 0

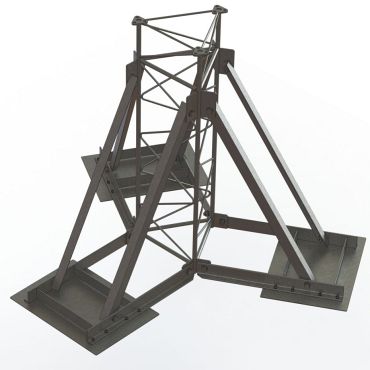

Hot-dip galvanized steel foundation for burial to smaller towers.
Assembly:
The foundation is placed on a flat leveled sand layer at the bottom of a 1.45m excavation with a diameter of 2.6m.
Then fill with the excavated soil provided an effective bulk density of at least 1800 kg / m3. Stamping is necessary.
It is ensured that the top of the footplates is absolutely horizontal.
Soil:
When dimensioning, it is assumed that the soil under the foundation underside is not inferior to:
Friction ground with> = 30 °, or
Clay with Cv> = 80kN / m²
Highest groundwater level should be lower than the bottom of the foundation.
