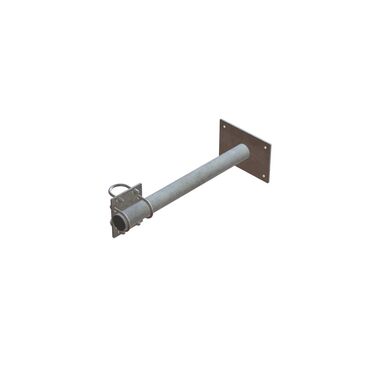

IBWM 5G offset 800mm Wall

Antenna bracket in hot-dip galvanized steel for mounting on a wall with adjustable brackets.

Basis Vind Vb, 0 = 24m / s
Terrain class = TC 2
Maximum installation height = 50m
Maximum load from equipment per mounting rod: 100kg, CxA = 1.0m2
Vertical support tube = Ø76 - Max 2000mm
Horizontal offset = 800mm

Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
