MBP Ø60-76mm

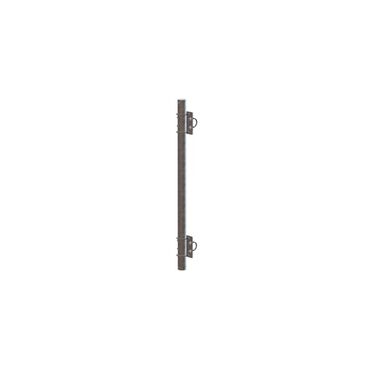

MBP Ø60-76mmAntenna bracket in hot-dip galvanized steel for mounting on pipes with a diameter of Ø60.3 mm with adjustable fittings.
Basis Vind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support tube = Ø76 - Max 4000mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna bracket in hot-dip galvanized steel for mounting on pipes with a diameter of Ø76.1 mm with adjustable fittings.
Basis Vind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support tube = Ø76 - Max 4000mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
