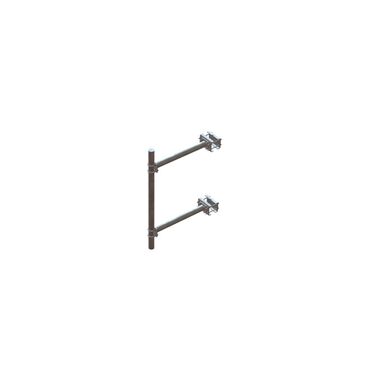

CB 5G L60-180mm offset 800mm
Antenna brackets in hot-dip galvanized steel for mounting on a mast or angle iron with the dimensions L60-110mm with fixed fittings.
Basis Vind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 100kg, CxA = 1.0m2
Vertical support tube = Ø76 - max 2000mm
Horizontal offset = 800mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna brackets in hot-dip galvanized steel for mounting on a mast or angle iron with the dimensions L120-180mm with fixed fittings.
Basis Vind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 100kg, CxA = 1.0m2
Vertical support tube = Ø76 - max 2000mm
Horizontal offset = 800mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
