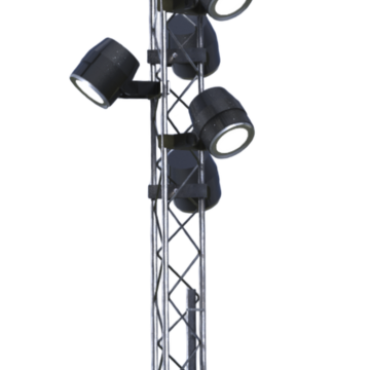

DESIGNER LIGHTING MAST (1-5 LIGHTS)
The designer lighting towers are as a standard designed in 6m and 9 m. They have an equilateral triangle cross-section, and a fully welded lattice structure with legs and bracings made of solid round bars.
The flange on the base of the structure has a ø110 mm hole for cable entry.
From the hole the cable runs up into the electrical cabinet, where a panel is installed for mounting electrical equipment. From there, cables run further up in the cable conduit for concealment in the tower. All steel is hot dip galvanized according to EN 1461.
Safety class normal, terrain class II and basic wind velocity 24m/s according to EN 1991-1-4.
Based on 3 luminaires, the 6m tower is made according to GWS – Street Lighting Materiel, May 2011
We can also make towers according to the following standards: EN 1993-3-1 and EN 1991-1-4.
Total theoretical tower weight (± 10%) = 63 kg
Leg distance at tower base = 200 mm
The designer lighting towers are as a standard designed in 6m and 9 m. They have an equilateral triangle cross-section and a fully welded lattice structure with legs and bracings made of solid round bars.
The base flange has a ø110 mm hole for cable entry.
From the hole the cable runs up into the electrical cabinet, where a panel is installed for mounting electrical equipment. From there, cables run further up in the cable conduit for concealment in the tower. All steel is hot dip galvanized according to EN 1461.
Safety class normal, terrain class II and basic wind velocity 24m/s according to EN 1991-1-4.
Based on 5 luminaires, the 9m tower is made according to GWS – Street Lighting Materiel, May 2011
We can also make towers according to the following standards: EN 1993-3-1 and EN 1991-1-4.
Total theoretical tower weight (± 10%) = 127 kg
Leg distance at tower base = 220 mm
