Travers 8 lights
TRAVERS 08-00Travers for mounting up to 8 lamps in the top of the lattice mast.
The lamp travers is mounted on top of the flange plates of the lattice mast.
Lamp travers TRAVERS 08-00 can be used with sections S302 and S303. The following lamp types can be mounted on the travers:
For example: Siteco A3 Maxi metal halide (0.13 m² wind surface). Siteco FL20 Maxi LED corresponding to 1,000W metal halide (0.11 m² wind surface). Phillips 20 Optivision metal halide (0.072 m² wind surface)
Max weight per lamp: g = 22 kg
Max wind area per lamp: Atot = 0.13 m² (Atot = Aref x cf)
Max wind load: 4.00 kN / m² (3-sec gust = 80.0 m / s)
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.

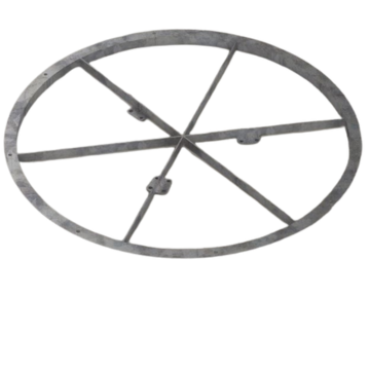

Lamp travers is made as a top ring consisting of: three flat rectangular bars, three steel plates (used to attach the ring to the lattice tower) and a steel ring enclosing the entire upper ring structure
| Dimension and quality: | 3 x 1.92 m FL.60x8, S235J2 according to EN 10025-2 |
| Plate 10, S335J2 according to EN 10025-2. | |
| 6,30 m L60x60x6, S235J2 according to EN 10025-2. | |
| Surface: | Hot-dip galvanized according to EN ISO 1461. |
| Fastening, mast: | Bolts |
| Fastening, lamp: | Through bolt M20x40 mm |
| Weight: | 42 kg (+ lamp) |
| Wind area: | 0.30 m² (+ lamp) |
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
