Eathing plates for M30 with five ø12
JORDINGSPL Ø31/5XØ12
Contact us for price

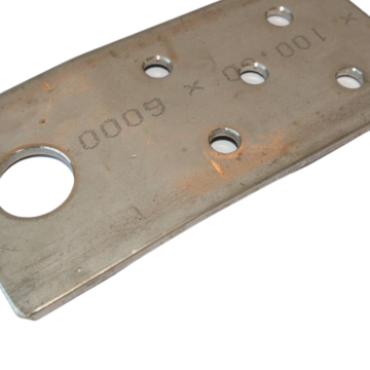

The earthing plate is used to connect the tower to an earthing system.
The plate is placed under a nut on one of the foundation bolts and the ground cable is subsequently connected to the plate via the five drilled ø12 holes.
| Dimension and quality: | 100x6x215mm AiSi316. |
| Surface: | None. |
| Fastening, mast: | On top of foot plate together with foundation bolt M30 |
| Weight: | <1 kg |
