Earthing Plates for M16 and M20 with one ø10
JORDINGSPL Ø21/1XØ10
Contact us for price

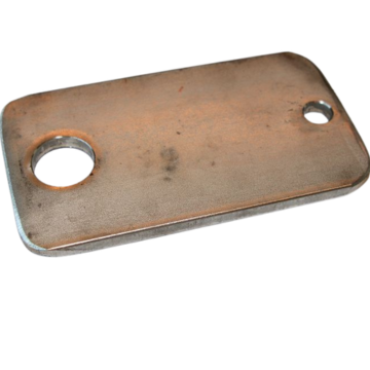

The earthing plate is used to connect the tower to an earthing system.
The plate is placed under a nut on one of the foundation bolts and the ground cable is subsequently connected to the plate via the drilled ø10 hole.
| Dimension and quality: | 70x6x125mm AiSi316. |
| Surface: | None. |
| Fastening, mast: | On top of foot plate together with foundation bolt M16 and M20 |
| Weight: | <1 kg |
