CB 4G L60-180mm offset 400mm

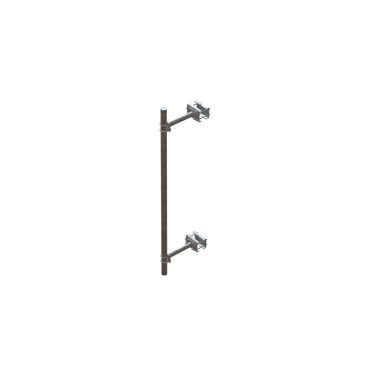

Antenna fittings in hot-dip galvanized steel for mounting on a mast or angle iron with the dimensions L60-110mm with fixed fittings.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support tube = Ø76 - max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
Antenna fittings in hot-dip galvanized steel for mounting on a mast or angle iron with the dimensions L120-180mm with fixed fittings.
Basis Wind Vb, 0 = 27m / s
Terrain class = TC 1
Maximum installation height = 70m
Maximum load from equipment per mounting rod: 150kg, CxA = 1.6m2
Vertical support tube = Ø76 - max 4000mm
Horizontal offset = 400mm
Calculations have been performed in accordance with DS / EN 1993-1-1 + NA - Steel structures - General rules.
Wind load according to DS / EN 1991-1-4 + NA - Load on load-bearing structures - Wind load.
